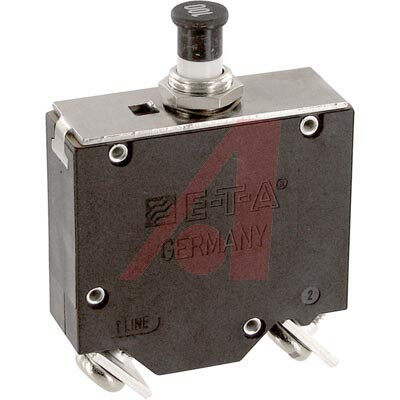

452-K34-FN2-100A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR THRM-MAG 100A 28VDC
PDF
/
Buying Options
Total Price: USD $250.97
Unit Price: USD $250.967523
≥1 USD $250.967523
≥10 USD $236.761815
≥100 USD $223.3602
≥500 USD $210.717176
≥1000 USD $198.789789
Inventory: 8779
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Terminal Shape SCREW
Technical
Published 2010
Series 452
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Additional Feature ENVIRONMENTAL CHARACTERISTICS: IP00; IP40
Voltage - Rated DC 28V
Current Rating 100A
Reference Standard BW; QPL; UL; VG
Approval Agency CSA C22.2 No 235, UL1077
Body Length or Diameter 55.5mm
Operating Temperature (Max) 75°C
Actuator Type Push-Pull Plunger
Operating Temperature (Min) -55°C
Environmental Characteristics CORROSSION RESISTANT; MOISTURE RESISTANT
Number of Poles 1
Breaker Type Thermal Magnetic
Rated Breaking Capacity 6000 A
Circuit Function TEASE-FREE AND TRIP-FREE
Dimensions
Body Height 52mm
Compliance
RoHS Status ROHS3 Compliant
