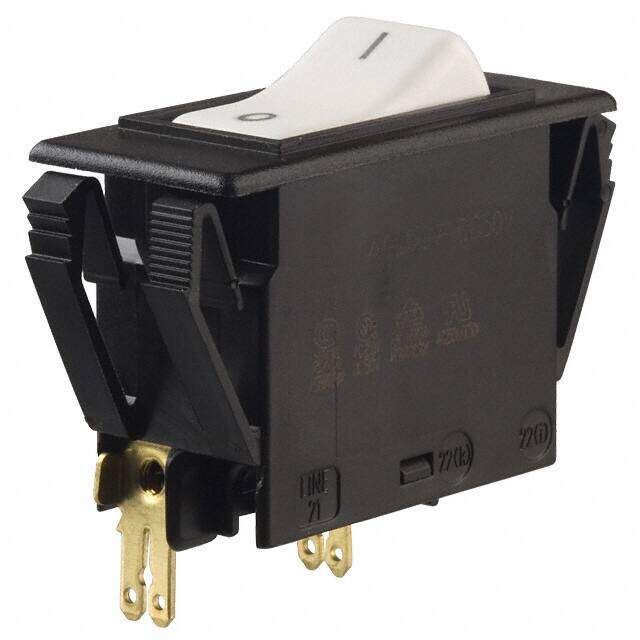

3120-F311-P7T1-W01D-2A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR THRM 2A 250VAC 50VDC
PDF
/
Buying Options
Total Price: USD $20.63
Unit Price: USD $20.631968
≥1 USD $20.631968
≥10 USD $19.464128
≥100 USD $18.362385
≥500 USD $17.322999
≥1000 USD $16.342448
Inventory: 9322
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Panel Mount
Surface Mount NO
Terminal Shape QUICK CONNECT
Technical
Published 2012
Series 3120-F
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) Not Applicable
Voltage - Rated DC 50V
Current Rating 2A
Reference Standard CCC; CSA; UL; VDE
Voltage - Rated AC 250V
Approval Agency CSA C22.2 No 235, GB 17701, IEC 60934, UL1077
Body Length or Diameter 54mm
Operating Temperature (Max) 60°C
Actuator Type Rocker
Operating Temperature (Min) -30°C
Environmental Characteristics CORROSSION RESISTANT
Number of Poles 1
Breaker Type Thermal
Rated Breaking Capacity 20 A
Circuit Function MANUAL ON/OFF
Dimensions
Body Height 33mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
