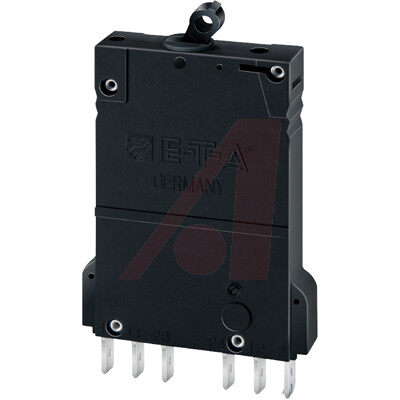

2210-S211-P1M1-H111-25A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR THRM 25A
PDF
/
Inventory: 5275
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Panel
Mounting Type Panel Mount
Terminal Shape QUICK CONNECT
Technical
Published 2013
Series 2210
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Additional Feature CORROSSION RESISTANT, RATED BREAKING CAPACITY AT 65 VDC: 2000 A
Voltage - Rated DC 28V
Current Rating 25A
Reference Standard CQC; CSA; EN; IEC; GB; GL; UL; VDE
Voltage - Rated AC 250V
Approval Agency CSA C22.2 No 235, GB 17701, IEC 60934, UL1077
Body Length or Diameter 50mm
Operating Temperature (Max) 60°C
Physical Dimension 50mm x 68mm
Actuator Type Lever
Operating Temperature (Min) -30°C
Environmental Characteristics IP00; IP30; MOISTURE RESISTANT
Number of Poles 1
Breaker Type Thermal Magnetic
Blow Characteristic STANDARD
Rated Breaking Capacity 2000 A
Circuit Function TRIP FREE
Dimensions
Body Height 68mm
Compliance
RoHS Status ROHS3 Compliant
