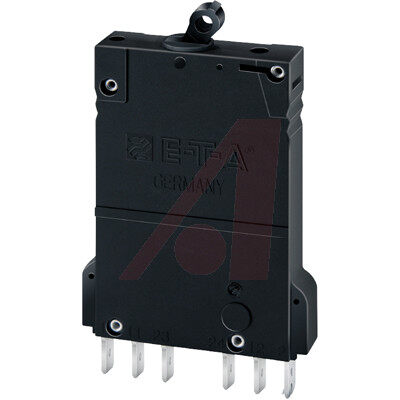

2210-S211-P1M1-H111-10A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR 10A 277VAC 65VDC
PDF
/
Inventory: 1902
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Panel, Socket
Mounting Type Panel Mount
Terminal Shape QUICK CONNECT
Technical
Published 2013
Series 2210-S2
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Voltage - Rated DC 65V
Current Rating 10A
Reference Standard CQC; CSA; EN; IEC; GB; GL; UL; VDE
Voltage - Rated AC 277V
Approval Agency CSA C22.2 No 235, GB 17701, IEC 60934, UL1077
Body Length or Diameter 50mm
Operating Temperature (Max) 60°C
Physical Dimension 50mm x 68mm
Actuator Type Lever
Operating Temperature (Min) -30°C
Environmental Characteristics IP00; IP30; MOISTURE RESISTANT
Number of Poles 1
Breaker Type Thermal Magnetic
Blow Characteristic STANDARD
Rated Breaking Capacity 5000 A
Circuit Function TRIP FREE
Dimensions
Body Height 68mm
Compliance
RoHS Status ROHS3 Compliant
