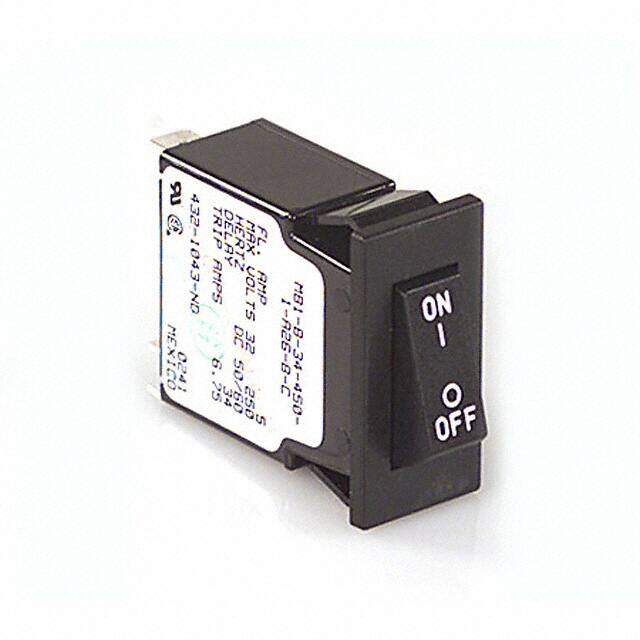

MB1-B-34-450-1A26-B-C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
Circuit Breakers 5 A ONE POLE FLAT
PDF
/
Inventory: 4338
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 17.27mm
Length 35.43mm
Height 34.93mm
Technical
Breaker Type Magnetic (Hydraulic Delay)
Number of Poles 1
Actuator Type Rocker
Voltage - Rated AC 250V
Current Rating 5A
Current Rating (Amps) 5A
Voltage - Rated DC 80V
Color White
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series M
Published 2012
Packaging Bulk
Physical
Mounting Type Panel Mount
Mount Panel
Supply Chain
Factory Lead Time 6 Weeks
