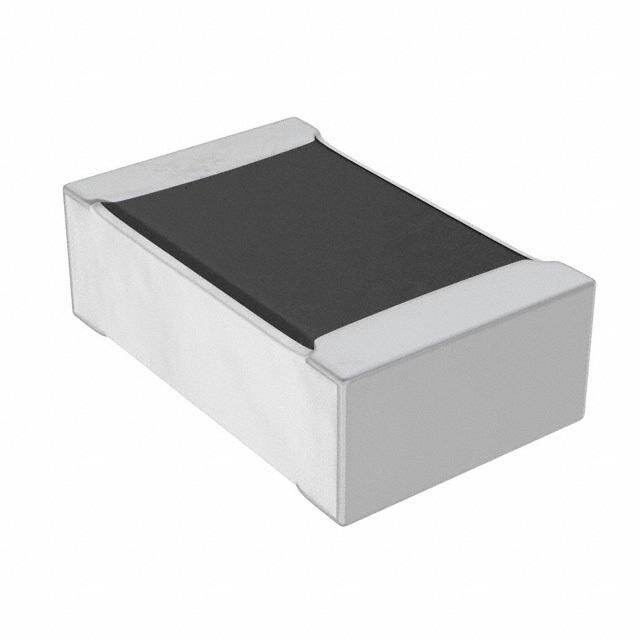

PCF0805R-100KBT1
RoHS
/
Package /
Category Resistors / Chip Resistor - Surface Mount
Description
FIXED RESISTOR Chip Resistor 0.1% 25ppm/C 100kOhm 100mW
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.622167
≥1 USD $0.622167
≥10 USD $0.586956
≥100 USD $0.55373
≥500 USD $0.522388
≥1000 USD $0.49282
Inventory: 1191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Terminal Shape WRAPAROUND
Number of Pins 2
Technical
Packaging Cut Tape
Published 2011
Tolerance 0.1%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 2
Temperature Coefficient 25 ppm/°C
Resistance 100kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Metal Film, Thin Film
Additional Feature LASER TRIMMABLE, PRECISION
Power Rating 100mW
Voltage - Rated DC 100V
Packing Method TR, PAPER
Depth 1.25mm
Construction Rectangular
Resistor Type FIXED RESISTOR
Military Standard Not
Voltage - Rated AC 100V
Case Code (Metric) 2012
Case Code (Imperial) 0805
Rated Temperature 70°C
Power Dissipation-Max 100mW
Dimensions
Height 660.4μm
Length 2mm
Width 1.2446mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
