WSK25125L000FEA
RoHS
/
Package 2512
Category Resistors / Chip Resistor - Surface Mount
Description

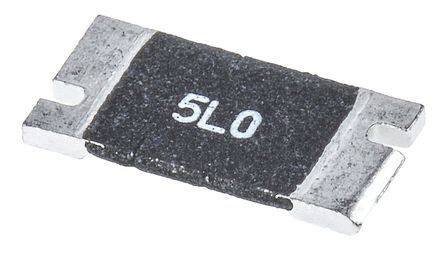

VISHAY - WSK25125L000FEA - CURRENT SENSE RES, 0R005, 1%, 1 W, 2512
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.19504
≥100 USD $1.158432
≥500 USD $1.05688
≥1000 USD $0.865832
≥3000 USD $0.772358
Inventory: 1148
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 3.2mm
Length 6.35mm
Height 635μm
Technical
Case Code (Imperial) 2512
Case Code (Metric) 6432
Voltage - Rated AC 70mV
Military Standard Not
Depth 3.18mm
Voltage - Rated DC 70mV
Power Rating 1W
Voltage - Rated 70mV
Composition Metal Strip
Min Operating Temperature -65°C
Max Operating Temperature 170°C
Resistance 5mOhm
Temperature Coefficient 35 ppm/°C
Termination SMD/SMT
Tolerance 1%
Published 2009
Packaging Cut Tape
Physical
Package / Case 2512
Contact Plating Tin
