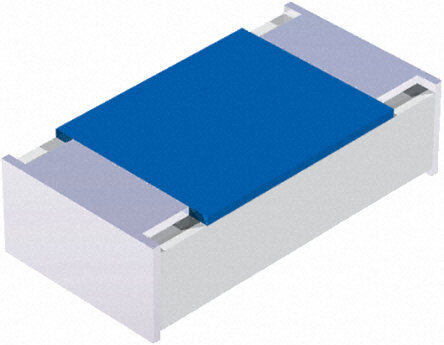

MCT06030D7509BP500
RoHS
/
Package 0603
Category Resistors / Chip Resistor - Surface Mount
Description
FIXED RESISTOR 0603 Chip Resistor 0.1% 25ppm/C 75Ohm 100mW
PDF
/
Inventory: 5407
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 1.55mm
Height 450μm
Technical
Rated Temperature 70°C
Working Voltage 75V
Rated Power Dissipation (P) 0.1W
Reference Standard CECC40401-801
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 850μm
Packing Method TR, PAPER, 7 INCH
Power Rating 100mW
HTS Code 8533.21.00.30
Additional Feature ANTI-SULFUR, PRECISION
Composition Thin Film
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 75Ohm
Temperature Coefficient 25 ppm/°C
ECCN Code EAR99
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 0.1%
Published 2009
Physical
Terminal Shape WRAPAROUND
Package / Case 0603
Mount Surface Mount
Contact Plating Tin
