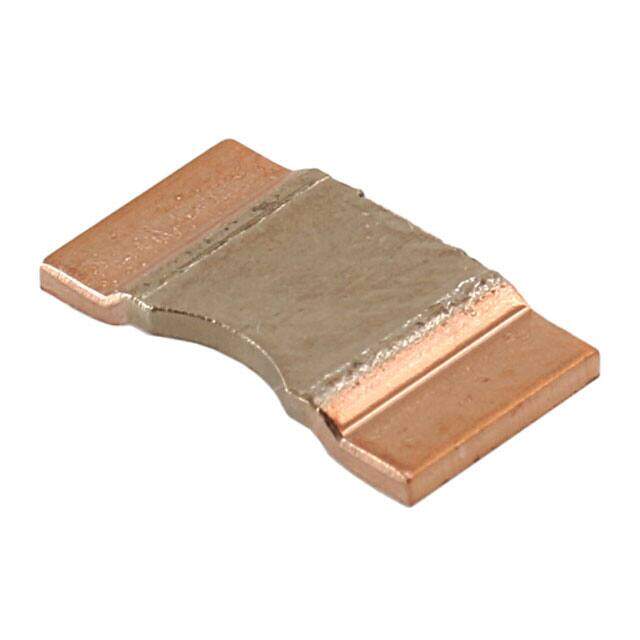

WSLP3921L5000FEA
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Resistors / Chip Resistor - Surface Mount
Description
Nonstandard FIXED RESISTOR WSLP 0.394Lx0.205W 10.00mmx5.20mm 9W 500muOhm ±175ppm/C
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
≥10 USD $1.60864
≥100 USD $1.571328
≥500 USD $1.478752
≥1000 USD $1.226192
≥3000 USD $1.109117
Inventory: 7046
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case Nonstandard
Surface Mount YES
Terminal Shape GULL WING
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -65°C~170°C
Packaging Tape & Reel (TR)
Published 2014
Series WSLP
Size / Dimension 0.394Lx0.205W 10.00mmx5.20mm
Tolerance ±1%
JESD-609 Code e3
Feature Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±175ppm/°C
Resistance 500μOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Metal Element
Power Rating 9W
Packing Method TR, EMBOSSED PLASTIC, 13 INCH
Max Power Dissipation 9W
Technology METAL STRIP
Construction Chip
Resistor Type FIXED RESISTOR
Case Code (Metric) 1052
Rated Power Dissipation (P) 9W
Case Code (Imperial) 3921
Working Voltage 0.067V
Dimensions
Height 508μm
Height Seated (Max) 0.020 0.50mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
