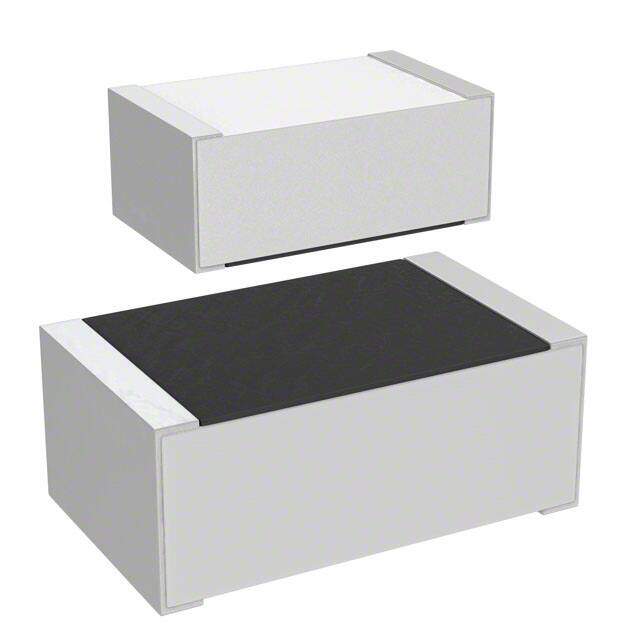

M55342K06B4E99RS3
RoHS
/
Package 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0805 (2012Metric) FIXED RESISTOR Military MIL-PRF-55342RM0705 0.080Lx0.050W 2.03mmx1.27mm 0.15W 4.99kOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.0064
≥1 USD $2.0064
≥10 USD $1.18888
≥100 USD $0.875072
≥500 USD $0.777392
≥1000 USD $0.606602
Inventory: 1105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Lead, Tin
Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 2012
Series Military, MIL-PRF-55342, RM0705
Size / Dimension 0.080Lx0.050W 2.03mmx1.27mm
Tolerance ±1%
Feature Military
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 4.99kOhm
Composition Thick Film
Power (Watts) 0.15W
Additional Feature ANTI-SULFUR
Power Rating 150mW
Voltage - Rated DC 50V
Packing Method TR, 7 Inch
Max Power Dissipation 150mW
Construction Rectangular
Resistor Type FIXED RESISTOR
Military Standard MIL-PRF-55342
Case Code (Metric) 2012
Rated Power Dissipation (P) 0.15W
Case Code (Imperial) 0805
Failure Rate R (0.01%)
Dimensions
Height 635μm
Height Seated (Max) 0.033 0.84mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
