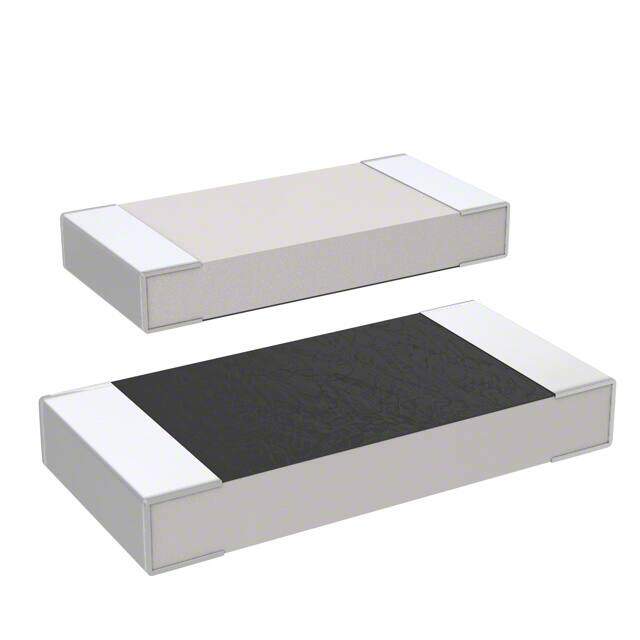

M55342K03B10E0RT1V
RoHS
/
Package Nonstandard
Category Resistors / Chip Resistor - Surface Mount
Description
Nonstandard FIXED RESISTOR Military MIL-PRF-55342RM1005 0.105Lx0.050W 2.67mmx1.27mm 0.2W 1/5W 10kOhm ±100ppm/C
PDF
/
Inventory: 4001
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.033 0.84mm
Height 838.2μm
Technical
Failure Rate R (0.01%)
Working Voltage 75V
Reach Compliance Code unknown
Resistor Type FIXED RESISTOR
Construction Rectangular
Max Power Dissipation 200mW
Packing Method TR
Additional Feature LASER TRIMMABLE, NON-INDUCTIVE
Power (Watts) 0.2W 1/5W
Composition Thin Film
Terminal Finish Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Resistance 10kOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Military, Non-Inductive
JESD-609 Code e0
Tolerance ±1%
Size / Dimension 0.105Lx0.050W 2.67mmx1.27mm
Series Military, MIL-PRF-55342, RM1005
Published 2017
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Supply Chain
Factory Lead Time 12 Weeks
