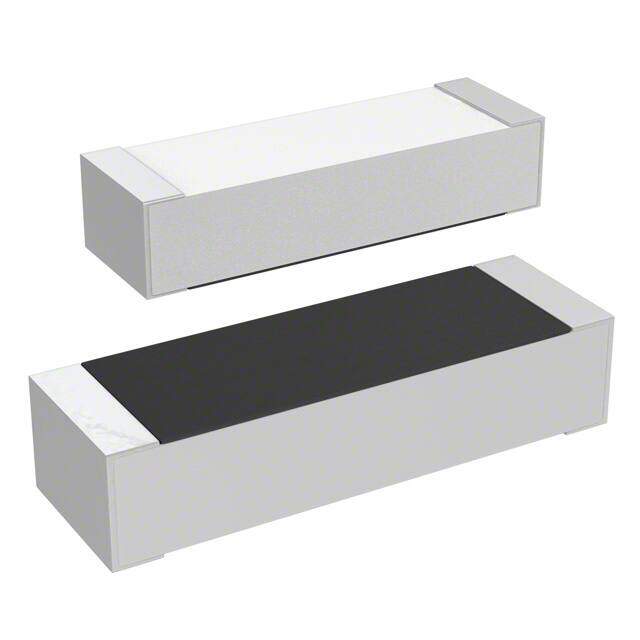

M55342H04B15D0RWS
RoHS
/
Package Nonstandard
Category Resistors / Chip Resistor - Surface Mount
Description
Nonstandard 1505 Military MIL-PRF-55342RM1505 0.155Lx0.050W 3.94mmx1.27mm 0.15W 15Ohms ±50ppm/C
PDF
/
Inventory: 10009
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Lead, Tin
Package / Case Nonstandard
Supplier Device Package 1505
Technical
Operating Temperature -55°C~150°C
Packaging Tray
Published 2013
Series Military, MIL-PRF-55342, RM1505
Size / Dimension 0.155Lx0.050W 3.94mmx1.27mm
Tolerance ±1%
Feature Military, Non-Inductive
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±50ppm/°C
Resistance 15Ohms
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Composition Thin Film
Power (Watts) 0.15W
Max Power Dissipation 150mW
Military Standard MIL-PRF-55342
Failure Rate R (0.01%)
Dimensions
Height 838.2μm
Height Seated (Max) 0.033 0.84mm
Length 3.937mm
Width 1.27mm
Thickness 381μm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
