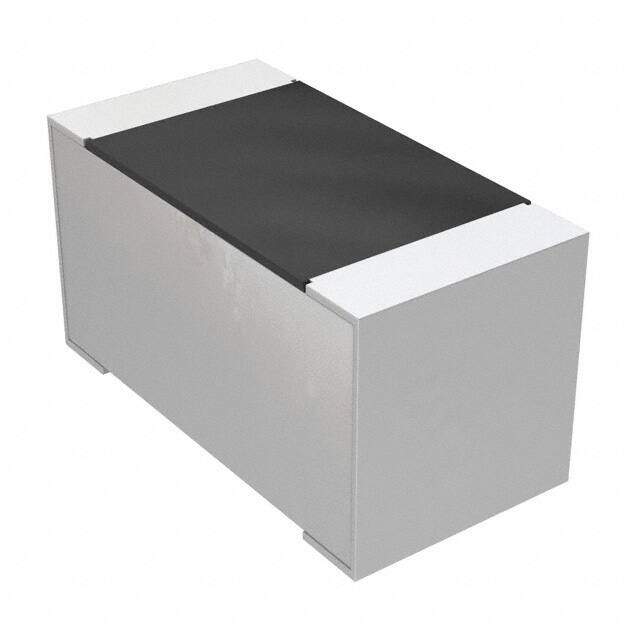

M55342E12B7B15RWI
RoHS
/
Package 0603 (1608 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0603 (1608Metric) 0603 Military MIL-PRF-55342RM0603 0.064Lx0.032W 1.63mmx0.81mm 0.1W 1/10W 7.15kOhms ±25ppm/C
PDF
/
Inventory: 6226
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 812.8μm
Length 1.6256mm
Height Seated (Max) 0.033 0.84mm
Height 838.2μm
Technical
Failure Rate R (0.01%)
Case Code (Imperial) 0603
Case Code (Metric) 1608
Max Power Dissipation 100mW
Power (Watts) 0.1W 1/10W
Composition Thin Film
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Resistance 7.15kOhms
Temperature Coefficient ±25ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Military, Non-Inductive
Tolerance ±0.1%
Size / Dimension 0.064Lx0.032W 1.63mmx0.81mm
Series Military, MIL-PRF-55342, RM0603
Published 2016
Packaging Tray
Operating Temperature -55°C~150°C
Physical
Supplier Device Package 0603
Package / Case 0603 (1608 Metric)
Supply Chain
Factory Lead Time 12 Weeks
