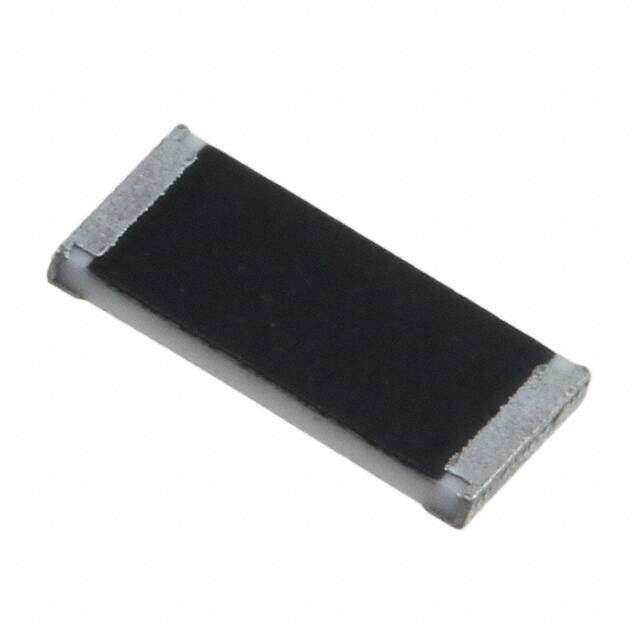

M32159B09MS3
RoHS
/
Package 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2512 (6432Metric) FIXED RESISTOR Military MIL-PRF-32159RCZ2512 0.250Lx0.124W 6.35mmx3.15mm 0Ohm Jumper
PDF
/
Inventory: 9114
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 2512 (6432 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Cut Tape (CT)
Published 2017
Series Military, MIL-PRF-32159, RCZ2512
Size / Dimension 0.250Lx0.124W 6.35mmx3.15mm
Tolerance Jumper
JESD-609 Code e0
Feature Military
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Resistance 0Ohm
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Composition Thick Film
Additional Feature RATED CURRENT: 6.3A
Packing Method TR, Plastic, 7 Inch
Max Power Dissipation 1W
Construction Chip
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Case Code (Metric) 6432
Rated Power Dissipation (P) 1W
Case Code (Imperial) 2512
Failure Rate M (1%)
Dimensions
Height 635μm
Height Seated (Max) 0.033 0.84mm
Compliance
RoHS Status Non-RoHS Compliant
