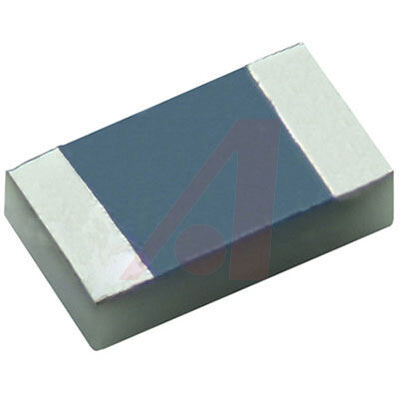

CH0603-75RJF image
Favorite
CH0603-75RJF image
Favorite

CH0603-75RJF

Vishay
RoHS
/
Package 0603
Category Resistors / Chip Resistor - Surface Mount
Description CH FIXED RESISTOR 0603 Chip Resistor 5% 100ppm/C 75Ohm 125mW
PDF
/
Inventory: 2072
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 1.52mm
Height 500μm

Technical

Working Voltage 50V
Rated Power Dissipation (P) 0.125W
Resistor Type FIXED RESISTOR
Construction Chip
Depth 750μm
Packing Method WAFFLE PACK
Power Rating 125mW
Subcategory Fixed Resistors
HTS Code 8533.21.00.30
Composition Thin Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Terminal Finish Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Resistance 75Ohm
Temperature Coefficient 100 ppm/°C
ECCN Code EAR99
Termination Solder
Number of Terminations 2
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 5%
Series CH
Published 2008

Physical

Terminal Shape ONE SURFACE
Package / Case 0603
Mount Surface Mount
