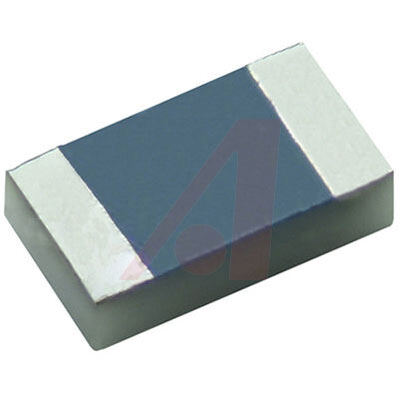

CH0603-100RJF
RoHS
/
Package 0603
Category Resistors / Chip Resistor - Surface Mount
Description
CH FIXED RESISTOR 0603 Chip Resistor 5% 100ppm/C 100Ohm 125mW
PDF
/
Inventory: 3679
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 1.52mm
Height 500μm
Technical
Working Voltage 50V
Rated Power Dissipation (P) 0.125W
Resistor Type FIXED RESISTOR
Construction Chip
Depth 750μm
Packing Method WAFFLE PACK
Power Rating 125mW
Subcategory Fixed Resistors
HTS Code 8533.21.00.30
Composition Thin Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Terminal Finish Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Resistance 100Ohm
Temperature Coefficient 100 ppm/°C
ECCN Code EAR99
Termination Solder
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e2
Tolerance 5%
Series CH
Published 2008
Physical
Terminal Shape ONE SURFACE
Package / Case 0603
Mount Surface Mount
