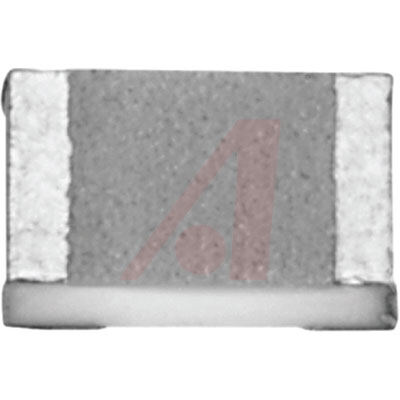

CH0402-10RJF
RoHS
/
Package 0402
Category Resistors / Chip Resistor - Surface Mount
Description
CH FIXED RESISTOR 0402 Chip Resistor 5% 100ppm/C 10Ohm 50mW
PDF
/
Inventory: 6971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case 0402
Terminal Shape ONE SURFACE
Technical
Published 2008
Series CH
Tolerance 5%
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient 100 ppm/°C
Resistance 10Ohm
Terminal Finish Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Max Operating Temperature 155°C
Min Operating Temperature -55°C
Composition Thin Film
HTS Code 8533.21.00.30
Subcategory Fixed Resistors
Power Rating 50mW
Packing Method WAFFLE PACK
Depth 600μm
Construction Chip
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 0.05W
Working Voltage 37V
Dimensions
Height 500μm
Length 1mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
