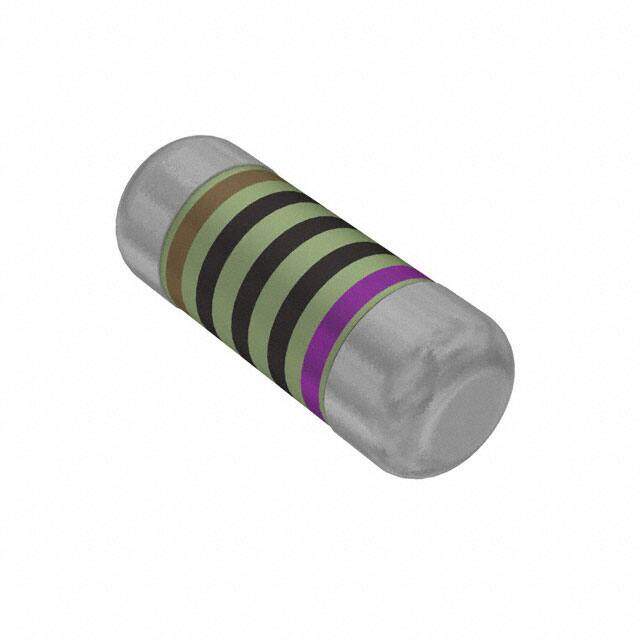

SMM02040D1000BB300
RoHS
RoHS compliant
RoHS compliantPackage MELF, 0204
Category Resistors / Chip Resistor - Surface Mount
Description
SMM0204 Mini MELF MELF 0204 Chip Resistor ±0.1% ±25ppm/C 100Ohms 0.25W 1/4W
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.37224
≥100 USD $0.318912
≥500 USD $0.277376
≥1000 USD $0.217184
≥3000 USD $0.198739
Inventory: 1132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Package / Case MELF, 0204
Supplier Device Package Mini MELF
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series SMM0204
Size / Dimension 0.055Diax0.142L 1.40mmx3.60mm
Tolerance ±0.1%
Feature Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±25ppm/°C
Resistance 100Ohms
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Thin Film
Power (Watts) 0.25W 1/4W
Voltage - Rated 200V
Power Rating 250mW
Voltage - Rated DC 200V
Military Standard Not
Dimensions
Diameter 1.4mm
Length 3.6mm
Width 1.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
