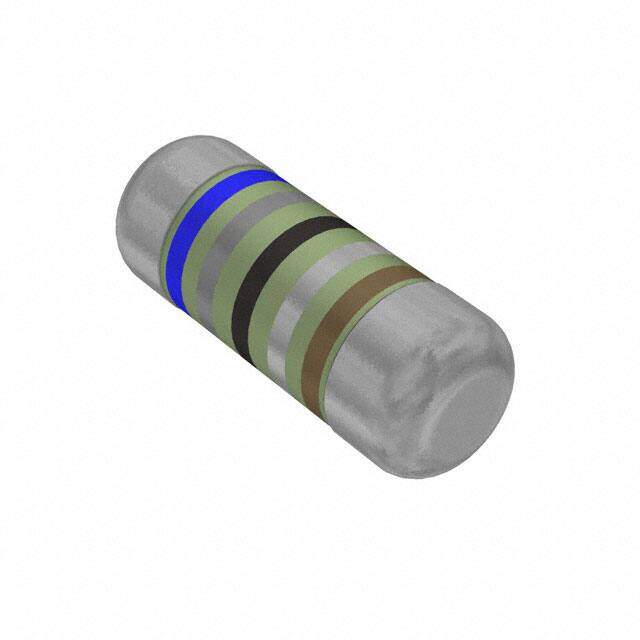

SMM02040C6808FB300
RoHS
RoHS compliant
RoHS compliantPackage MELF, 0204
Category Resistors / Chip Resistor - Surface Mount
Description
MELF 0204 Mini MELF SMM0204 0.055Diax0.142L 1.40mmx3.60mm 0.25W 1/4W 6.8Ohms ±50ppm/C
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.2332
≥100 USD $0.18128
≥500 USD $0.13376
≥1000 USD $0.093016
≥3000 USD $0.081066
Inventory: 1125
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 1.4mm
Length 3.6mm
Diameter 1.4mm
Technical
Military Standard Not
Voltage - Rated DC 200V
Power Rating 250mW
Voltage - Rated 200V
Power (Watts) 0.25W 1/4W
Composition Thin Film
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 6.8Ohms
Temperature Coefficient ±50ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Tolerance ±1%
Size / Dimension 0.055Diax0.142L 1.40mmx3.60mm
Series SMM0204
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Supplier Device Package Mini MELF
Package / Case MELF, 0204
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 11 Weeks
