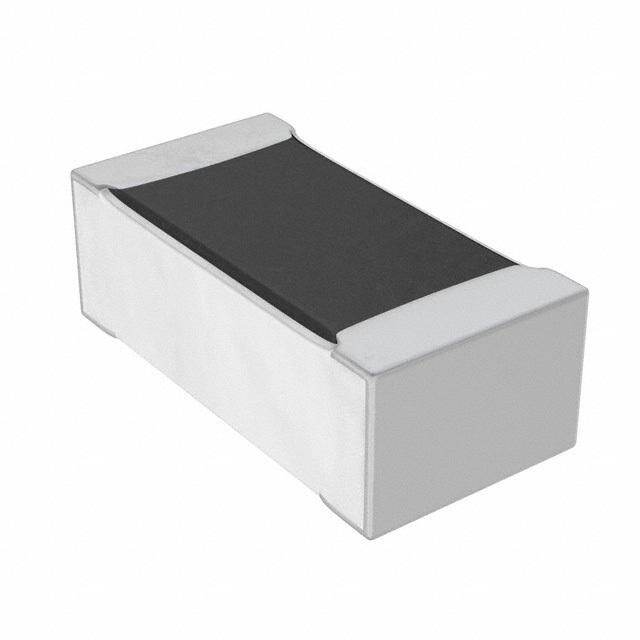

PFC-W0603LF-03-2802-B
RoHS
/
Package /
Category Resistors / Chip Resistor - Surface Mount
Description
FIXED RESISTOR Chip Resistor 0.1% 25ppm/C 28kOhm
PDF
/
Inventory: 1686
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Packaging Cut Tape (CT)
Published 2015
Tolerance 0.1%
JESD-609 Code e3
Feature Moisture Resistant
Pbfree Code yes
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 25 ppm/°C
Resistance 28kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Composition Thin Film
Additional Feature ANTI-SULFUR, PRECISION
Packing Method TR
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 1608
Case Code (Imperial) 0603
Working Voltage 75V
Rated Temperature 70°C
Power Dissipation-Max 100mW
Dimensions
Height 609.6μm
Length 1.6002mm
Width 787.4μm
Compliance
RoHS Status RoHS Compliant
