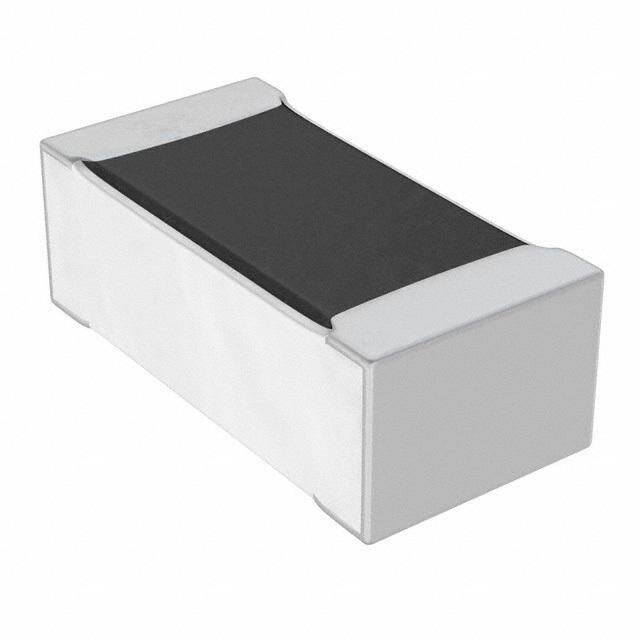

PFC-W0402LF-03-2942-B image
Favorite
PFC-W0402LF-03-2942-B image
Favorite

PFC-W0402LF-03-2942-B

TT Electronics
RoHS
/
Package /
Category Resistors / Chip Resistor - Surface Mount
Description FIXED RESISTOR Chip Resistor 0.1% 25ppm/C 29.4kOhm 62.5mW
PDF
/
Inventory: 6502
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Number of Pins 2

Technical

Packaging Cut Tape
Published 2015
Tolerance 0.1%
JESD-609 Code e3
Feature Moisture Resistant
Pbfree Code yes
Number of Terminations 2
Temperature Coefficient 25 ppm/°C
Resistance 29.4kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Composition Thin Film
Additional Feature ANTI-SULFUR, PRECISION
Power Rating 62.5mW
Voltage - Rated DC 25V
Packing Method TR
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 1005
Case Code (Imperial) 0402
Working Voltage 75V
Rated Temperature 70°C
Power Dissipation-Max 50mW

Dimensions

Height 381μm
Length 1.016mm
Width 533.4μm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
