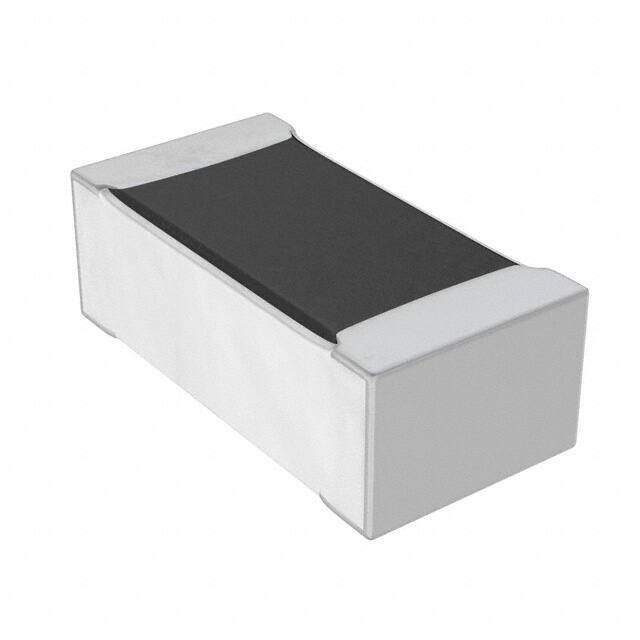

M55342E12B22B6R
RoHS
/
Package 0603 (1608 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0603 (1608Metric) FIXED RESISTOR Military MIL-PRF-55342RM0603 0.063Lx0.031W 1.60mmx0.80mm 0.1W 1/10W 22.6kOhm ±25ppm/C
PDF
/
Inventory: 4445
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.024 0.60mm
Technical
Failure Rate R (0.01%)
Working Voltage 50V
Rated Power Dissipation (P) 0.1W
Resistor Type FIXED RESISTOR
Construction RECTANGULAR PACKAGE
Packing Method TR, PLASTIC
Additional Feature PRECISION
Power (Watts) 0.1W 1/10W
Composition Thin Film
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Resistance 22.6kOhm
Temperature Coefficient ±25ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code no
Feature Military, Moisture Resistant
JESD-609 Code e0
Tolerance ±0.1%
Size / Dimension 0.063Lx0.031W 1.60mmx0.80mm
Series Military, MIL-PRF-55342, RM0603
Packaging Cut Tape (CT)
Operating Temperature -55°C~150°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0603 (1608 Metric)
