1623511-1
RoHS
/
Package 1206
Category Resistors / Chip Resistor - Surface Mount
Description

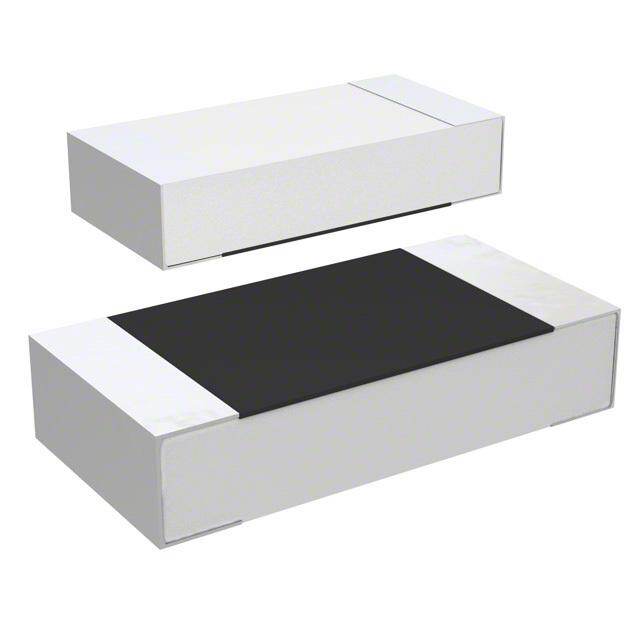

FIXED RESISTOR 1206 Chip Resistor 1% 100ppm/C 430Ohm
PDF
/
Inventory: 4904
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 1206
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Packaging Tape & Reel (TR)
Published 2010
Tolerance 1%
Pbfree Code yes
Number of Terminations 2
Temperature Coefficient 100 ppm/°C
Resistance 430Ohm
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Thick Film
Packing Method TR
Resistor Type FIXED RESISTOR
Power Dissipation-Max 250mW
Dimensions
Height 660.4μm
Length 3.0988mm
Width 1.5494mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
