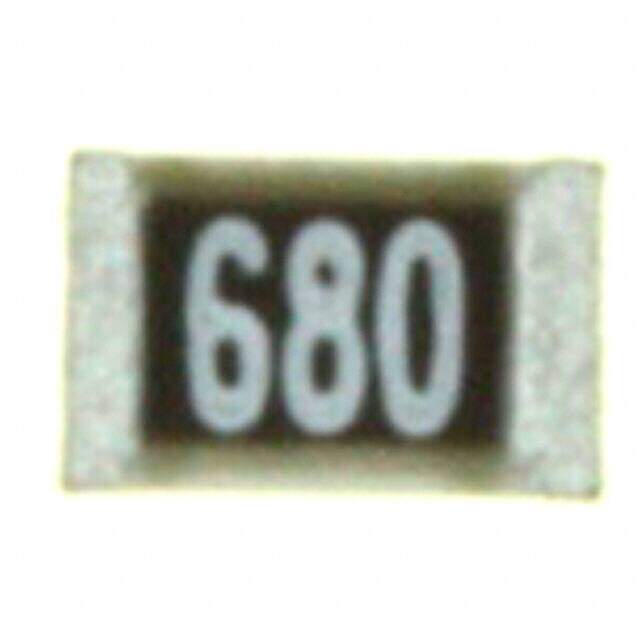

RGH2012-2E-P-680-B
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0805 (2012Metric) FIXED RESISTOR RGH 0.079Lx0.049W 2.00mmx1.25mm 0.25W 1/4W 68Ohm ±25ppm/C
PDF
/
Inventory: 4995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.020 0.50mm
Height 508μm
Technical
Case Code (Imperial) 0805
Case Code (Metric) 2012
Resistor Type FIXED RESISTOR
Construction Chip
Technology METAL FILM
Max Power Dissipation 250mW
Packing Method TR
Voltage - Rated DC 100V
Subcategory Fixed Resistors
Additional Feature HIGH PRECISION
Power (Watts) 0.25W 1/4W
Composition Thin Film
Terminal Finish Matte Tin (Sn)
Resistance 68Ohm
Temperature Coefficient ±25ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±0.1%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series RGH
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0805 (2012 Metric)
