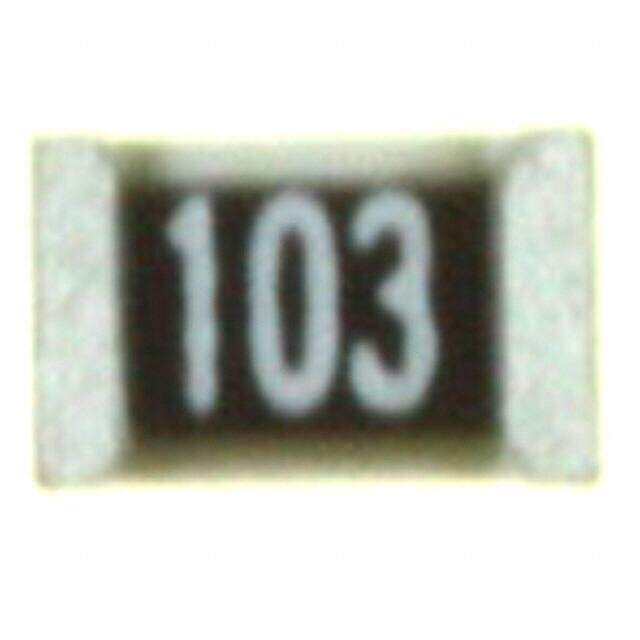

RGH2012-2E-P-103-B image
Favorite
RGH2012-2E-P-103-B image
Favorite

RGH2012-2E-P-103-B

Susumu
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 0805 (2012Metric) FIXED RESISTOR RGH 0.079Lx0.049W 2.00mmx1.25mm 0.25W 1/4W 10kOhm ±25ppm/C
PDF
/
Inventory: 6550
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2007
Series RGH
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±0.1%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±25ppm/°C
Resistance 10kOhm
Terminal Finish Matte Tin (Sn)
Composition Thin Film
Power (Watts) 0.25W 1/4W
Voltage - Rated 125V
Additional Feature HIGH PRECISION
Subcategory Fixed Resistors
Power Rating 250mW
Voltage - Rated DC 100V
Packing Method TR
Technology METAL FILM
Construction Chip
Resistor Type FIXED RESISTOR
Case Code (Metric) 2012
Case Code (Imperial) 0805

Dimensions

Height 400μm
Height Seated (Max) 0.020 0.50mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
