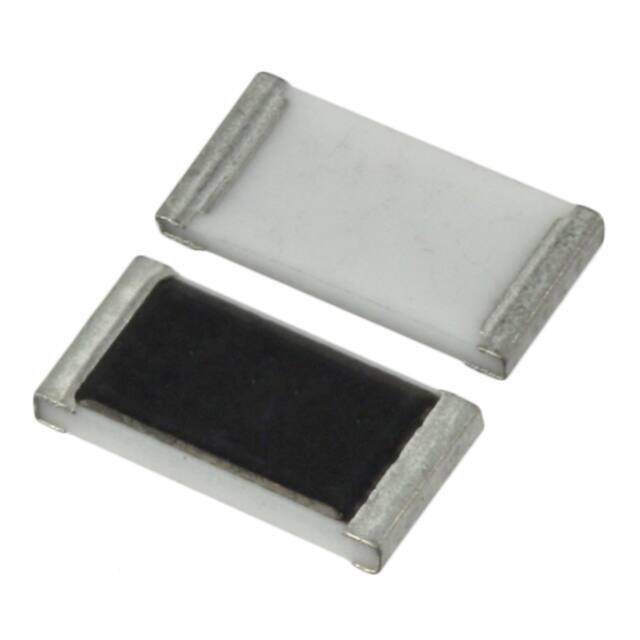

RPC2010KT15R0
RoHS
RoHS compliant
RoHS compliantPackage 2010 (5025 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
2010 (5025Metric) FIXED RESISTOR RPC 0.197Lx0.098W 5.00mmx2.50mm 0.75W 3/4W 15Ohm ±200ppm/C
PDF
/
Inventory: 3872
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.026 0.65mm
Height 711.2μm
Technical
Working Voltage 400V
Rated Power Dissipation (P) 0.75W
Resistor Type FIXED RESISTOR
Construction Rectangular
Max Power Dissipation 750mW
Packing Method TR, Embossed Plastic, 7 Inch
Power (Watts) 0.75W 3/4W
Composition Thick Film
Resistance 15Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Pulse Withstanding
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.197Lx0.098W 5.00mmx2.50mm
Series RPC
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Terminal Shape WRAPAROUND
Package / Case 2010 (5025 Metric)
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 12 Weeks
