CSS1206FT15L0
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
CSS FIXED RESISTOR 1206 (3216Metric) Chip Resistor ±1% ±25ppm/C 15mOhm 1W
PDF
/
Inventory: 7537
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Technical
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, Plastic, 7 Inch
Additional Feature ULTRA PRECISION
Power (Watts) 1W
Composition Metal Element
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 15mOhm
Temperature Coefficient ±25ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series CSS
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~225°C
Physical
Terminal Shape WRAPAROUND
Package / Case 1206 (3216 Metric)
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

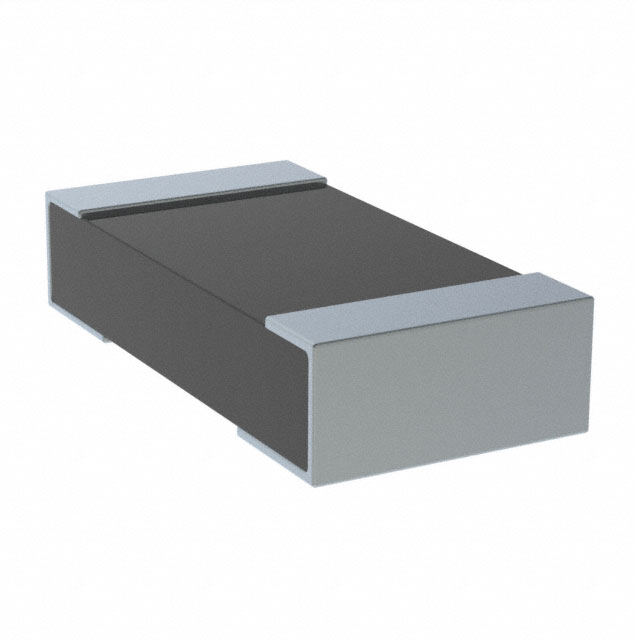

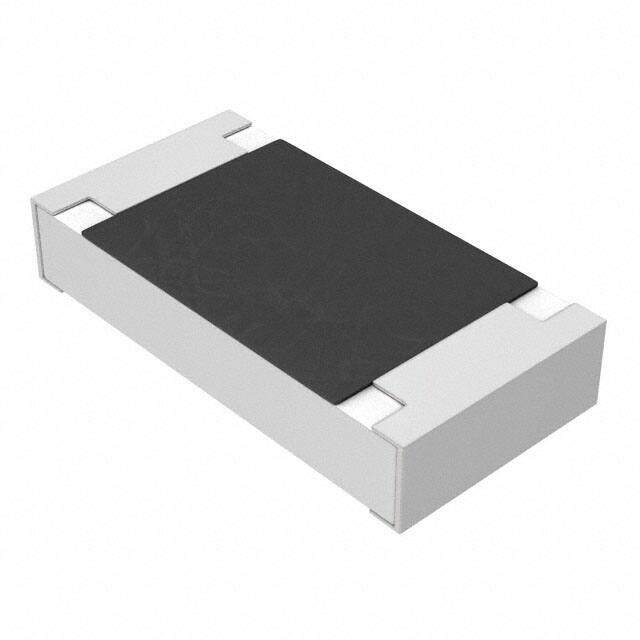

Alternative Model
