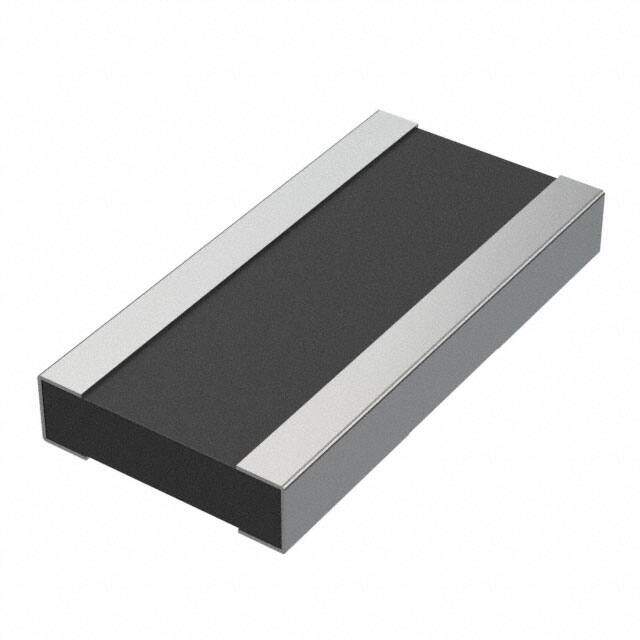

CSR1225JT25L0
RoHS
RoHS compliant
RoHS compliantPackage Wide 2512 (6432 Metric), 1225
Category Resistors / Chip Resistor - Surface Mount
Description
RES 0.025 OHM 5% 3W 2512 WIDE
PDF
/
Inventory: 7792
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Package / Case Wide 2512 (6432 Metric), 1225
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series CSR
Size / Dimension 0.122Lx0.248W 3.10mmx6.30mm
Tolerance ±5%
JESD-609 Code e3
Feature Current Sense
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±150ppm/°C
Resistance 25mOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 3W
Packing Method TR, PLASTIC, 7 INCH
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 3W
Dimensions
Height Seated (Max) 0.041 1.05mm
Compliance
RoHS Status ROHS3 Compliant
