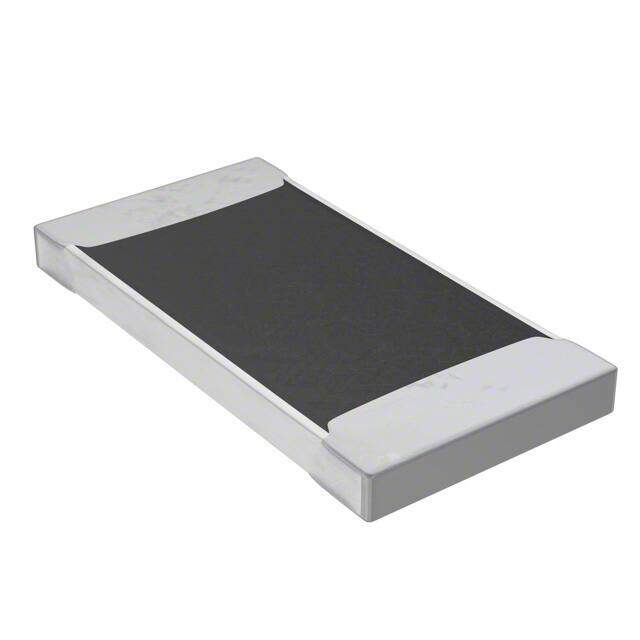

CSNL2512FK2L00 image
Favorite
CSNL2512FK2L00 image
Favorite
RoHS
RoHS RoHS compliant
Package 2512 (6432 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description RES SMD 2 MOHM 1% 2W 2512
PDF
/
Inventory: 2200
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 3.175mm
Length 6.35mm
Height Seated (Max) 0.022 0.55mm
Height 558.8μm

Technical

Max Power Dissipation 2W
Power Rating 2W
Power (Watts) 2W
Composition Metal Element
Min Operating Temperature -55°C
Max Operating Temperature 170°C
Resistance 2mOhms
Temperature Coefficient ±50ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Current Sense, Moisture Resistant
Tolerance ±1%
Size / Dimension 0.250Lx0.125W 6.35mmx3.18mm
Series CSNL
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~170°C

Physical

Supplier Device Package 2512
Package / Case 2512 (6432 Metric)
