RC3216F6980CS
RoHS
/
Package Molded
Category Resistors / Chip Resistor - Surface Mount
Description

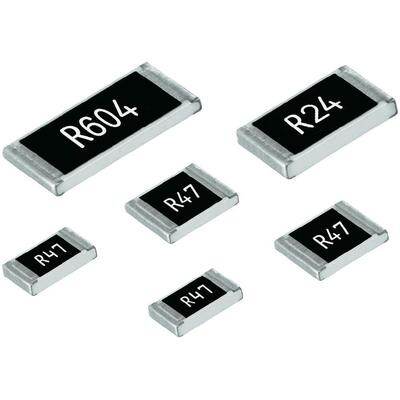

FIXED RESISTOR Molded Chip Resistor 1% 100ppm/C 698Ohm 250mW
PDF
/
Inventory: 9776
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 1.6mm
Length 3.2mm
Height 550μm
Technical
Rated Temperature 70°C
Size Code 1206
Rated Power Dissipation (P) 0.25W
Case Code (Metric) 3216
Resistor Type FIXED RESISTOR
Construction Chip
Packing Method TR, 7 INCH
Voltage - Rated DC 200V
Power Rating 250mW
Subcategory FIXED RESISTOR
Additional Feature PRECISION
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Resistance 698Ohm
Temperature Coefficient 100 ppm/°C
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 1%
Packaging Tape & Reel
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Molded
Contact Plating Tin
