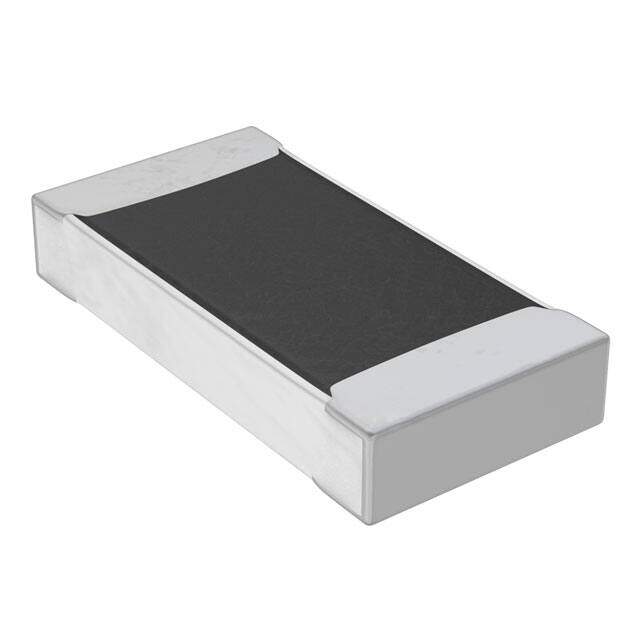

UCR18EVHJSR015
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR UCR 0.126Lx0.063W 3.20mmx1.60mm 0.5W 1/2W 15mOhm 0/ +350ppm/C
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.647015
≥1 USD $0.647015
≥10 USD $0.610392
≥100 USD $0.575843
≥500 USD $0.543242
≥1000 USD $0.5125
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.026 0.65mm
Height 660.4μm
Technical
Rated Power Dissipation (P) 0.5W
Reference Standard TS 16949
Resistor Type FIXED RESISTOR
Construction Rectangular
Max Power Dissipation 500mW
Packing Method TR, PAPER, 7 INCH
Power (Watts) 0.5W 1/2W
Composition Thick Film
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 15mOhm
Temperature Coefficient 0/ +350ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series UCR
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206 (3216 Metric)
Supply Chain
Factory Lead Time 10 Weeks
