TRR18EZPJ3R0
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description

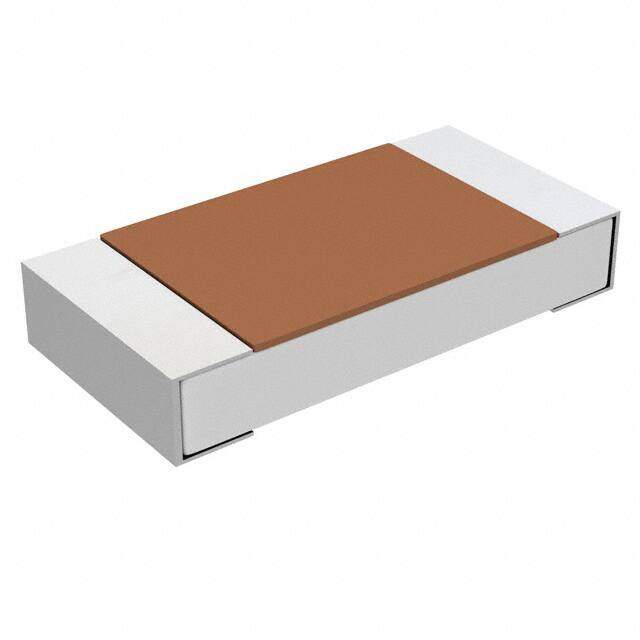

TRR FIXED RESISTOR 1206 (3216Metric) Chip Resistor ±5% ±400ppm/C 3Ohm 0.25W 1/4W
PDF
/
Inventory: 2910
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2014
Series TRR
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Feature Anti-Sulfur
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±400ppm/°C
Resistance 3Ohm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.25W 1/4W
Subcategory FIXED RESISTOR
Packing Method TR, PAPER, 7 INCH
Max Power Dissipation 250mW
Construction Chip
Resistor Type FIXED RESISTOR
Reference Standard TS 16949
Dimensions
Height 660.4μm
Height Seated (Max) 0.026 0.65mm
Compliance
RoHS Status ROHS3 Compliant
