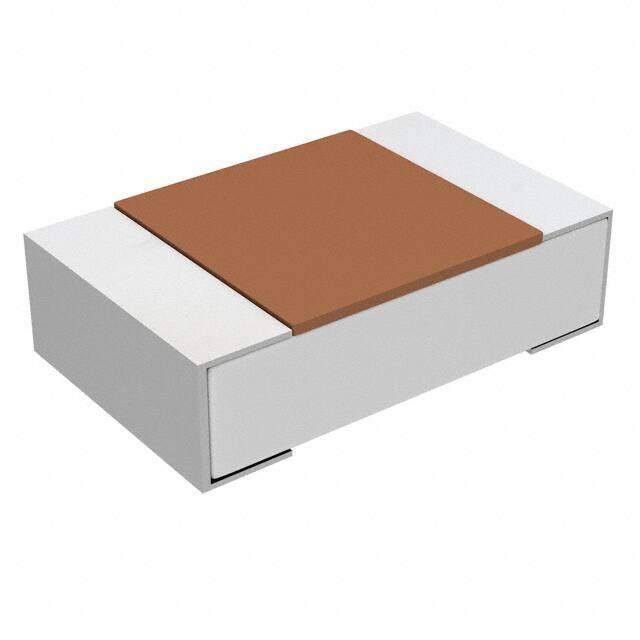

TRR10EZPJ202
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
TRR FIXED RESISTOR 0805 (2012Metric) Chip Resistor ±5% ±200ppm/C 2kOhm 0.125W 1/8W
PDF
/
Inventory: 7244
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.026 0.65mm
Height 660.4μm
Technical
Working Voltage 150V
Case Code (Imperial) 0805
Case Code (Metric) 2012
Reference Standard TS 16949
Resistor Type FIXED RESISTOR
Construction Chip
Max Power Dissipation 125mW
Packing Method TR, PAPER, 7 INCH
Subcategory FIXED RESISTOR
Power (Watts) 0.125W 1/8W
Composition Thick Film
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 2kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
Feature Anti-Sulfur
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series TRR
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0805 (2012 Metric)
