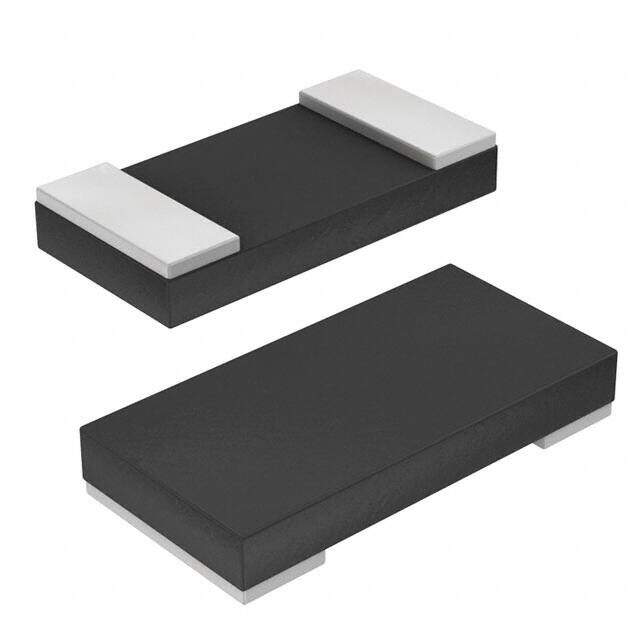

PMR18EZPFU10L0
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR PMR 0.126Lx0.063W 3.20mmx1.60mm 1W 10mOhm ±100ppm/C
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.40744
≥100 USD $0.36784
≥500 USD $0.331232
≥1000 USD $0.273504
≥3000 USD $0.257558
Inventory: 64871
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.017 0.43mm
Height 558.8μm
Technical
Case Code (Imperial) 1206
Rated Power Dissipation (P) 1W
Case Code (Metric) 3216
Reference Standard TS 16949
Resistor Type FIXED RESISTOR
Construction Chip
Technology METAL ALLOY
Max Power Dissipation 1W
Packing Method TR, PAPER, 7 INCH
Power Rating 1W
Subcategory FIXED RESISTOR
Composition Thick Film
Terminal Finish Tin (Sn)
Resistance 10mOhm
Temperature Coefficient ±100ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series PMR
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case 1206 (3216 Metric)
Supply Chain
Factory Lead Time 10 Weeks
