MCR18ERTF2320
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR MCR 0.120Lx0.061W 3.05mmx1.55mm 0.25W 1/4W 232Ohm ±100ppm/C
PDF
/
Inventory: 9159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case 1206 (3216 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2012
Series MCR
Size / Dimension 0.120Lx0.061W 3.05mmx1.55mm
Tolerance ±1%
JESD-609 Code e3
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±100ppm/°C
Resistance 232Ohm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.25W 1/4W
Subcategory FIXED RESISTOR
Power Rating 125mW
Voltage - Rated DC 200V
Packing Method TR, PAPER, 7 INCH
Max Power Dissipation 250mW
Construction Chip
Resistor Type FIXED RESISTOR
Reference Standard TS 16949
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dimensions
Height 660.4μm
Height Seated (Max) 0.026 0.65mm
Compliance
RoHS Status ROHS3 Compliant

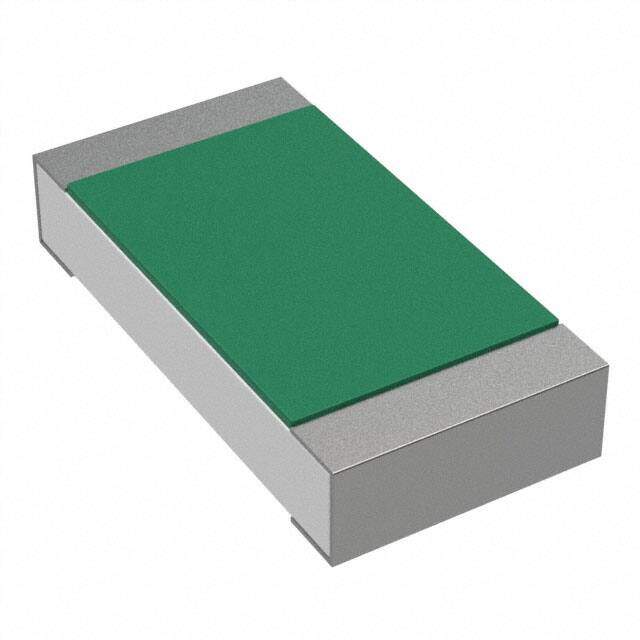

Alternative Model
