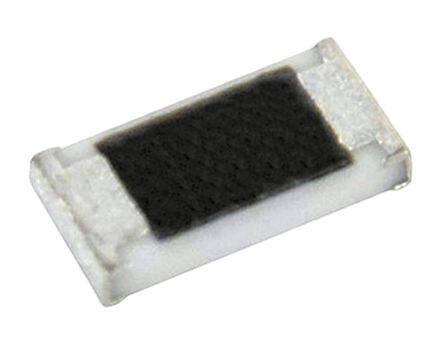

MCR01MZPF4701
RoHS
/
Package Molded
Category Resistors / Chip Resistor - Surface Mount
Description
FIXED RESISTOR Molded Chip Resistor 1% 100ppm/C 4.7kOhm 62.5mW
PDF
/
Buying Options
Total Price: USD $0
Unit Price: USD $0.002487
≥1 USD $0.002487
≥10 USD $0.001918
≥100 USD $0.001619
Inventory: 1183
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 1mm
Technical
Rated Temperature 70°C
Size Code 0402
Rated Power Dissipation (P) 0.063W
Case Code (Metric) 1005
Reference Standard TS 16949
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 500μm
Packing Method TR, PAPER, 7 INCH
Voltage - Rated DC 50V
Power Rating 62.5mW
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 4.7kOhm
Temperature Coefficient 100 ppm/°C
Number of Terminations 2
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 1%
Published 2012
Physical
Terminal Shape WRAPAROUND
Package / Case Molded
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
