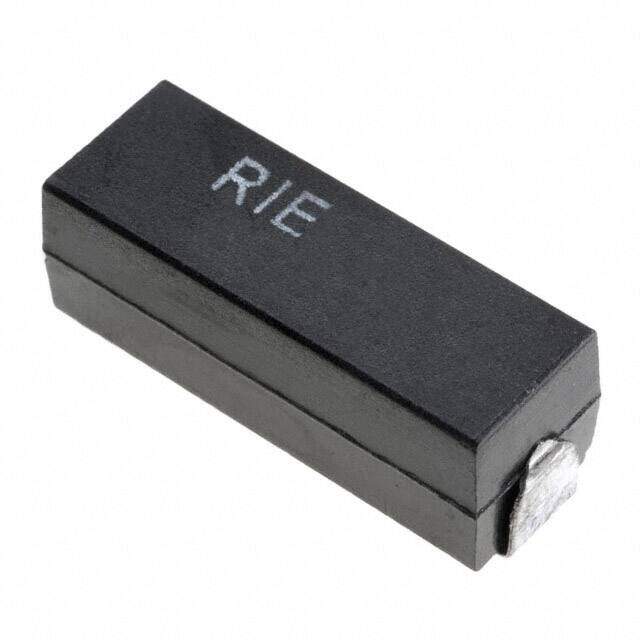

S5-22RF1 image
Favorite
S5-22RF1 image
Favorite

S5-22RF1

Riedon
RoHS
RoHS RoHS compliant
Package 8230 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description RES SMD 22 OHM 1% 4W 8230
PDF
/
Inventory: 3432
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Package / Case 8230 J-Lead

Technical

Operating Temperature -55°C~275°C
Packaging Tape & Reel (TR)
Published 2012
Series S
Size / Dimension 0.819Lx0.296W 20.80mmx7.50mm
Tolerance ±1%
Feature Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±20ppm/°C
Resistance 22Ohms
Max Operating Temperature 275°C
Min Operating Temperature -55°C
Composition Wirewound
Power (Watts) 4W
Max Power Dissipation 4W

Dimensions

Height 8.1026mm
Height Seated (Max) 0.319 8.10mm
Length 20.8026mm
Width 7.5184mm

Compliance

RoHS Status ROHS3 Compliant
