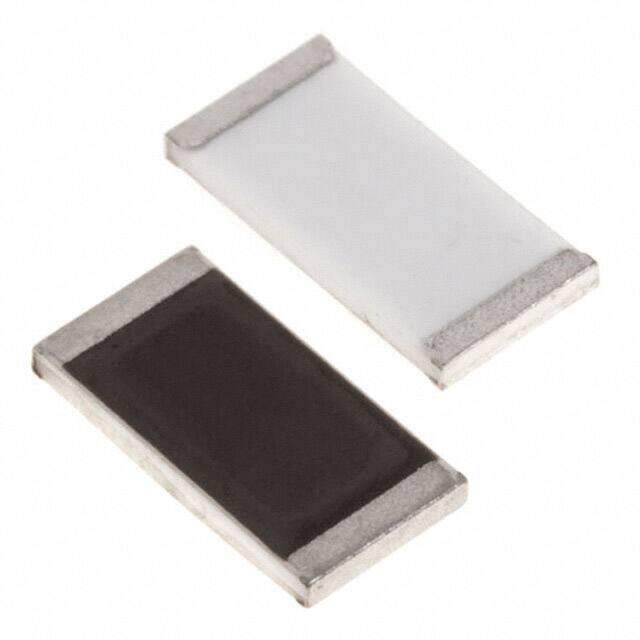

PCR0805-4R7J1
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
PCR 0805 0805 (2012Metric) Chip Resistor ±5% ±200ppm/C 4.7Ohms 0.25W 1/4W
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.12496
≥100 USD $0.085712
≥500 USD $0.073832
≥1000 USD $0.054173
≥3000 USD $0.047995
Inventory: 4672
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 1.2446mm
Length 2.0066mm
Height Seated (Max) 0.024 0.60mm
Height 508μm
Technical
Case Code (Imperial) 0805
Case Code (Metric) 2012
Max Power Dissipation 250mW
Power (Watts) 0.25W 1/4W
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Resistance 4.7Ohms
Temperature Coefficient ±200ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pulse Withstanding
Tolerance ±5%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series PCR
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Supplier Device Package 0805
Package / Case 0805 (2012 Metric)
Supply Chain
Factory Lead Time 9 Weeks
