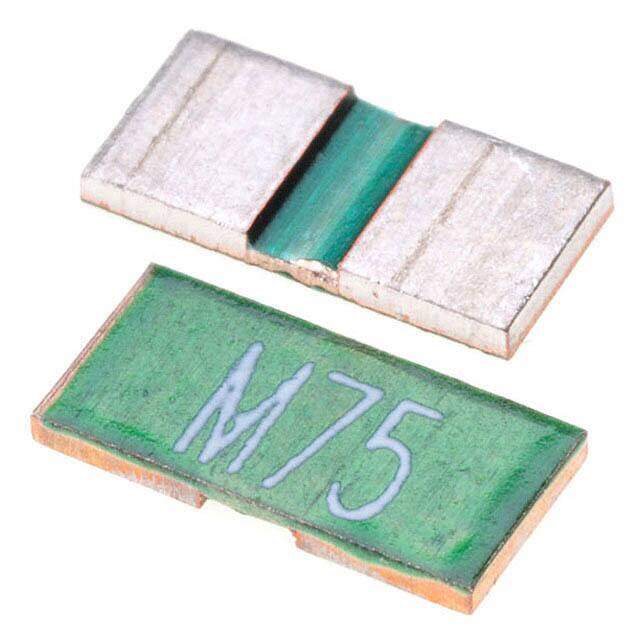

CSR1206-0R002F1 image
Favorite
CSR1206-0R002F1 image
Favorite

CSR1206-0R002F1

Riedon
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description RES 0.002 OHM 1% 1W 1206
PDF
/
Inventory: 1854
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 1.6002mm
Length 3.2004mm
Height Seated (Max) 0.024 0.60mm
Height 609.6μm

Technical

Case Code (Imperial) 1206
Case Code (Metric) 3216
Max Power Dissipation 1W
Power (Watts) 1W
Composition Metal Element
Min Operating Temperature -55°C
Max Operating Temperature 170°C
Resistance 2mOhms
Temperature Coefficient ±50ppm/°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Current Sense, Non-Inductive
Tolerance ±1%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series CSR
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~170°C

Physical

Supplier Device Package 1206
Package / Case 1206 (3216 Metric)

Supply Chain

Factory Lead Time 21 Weeks
