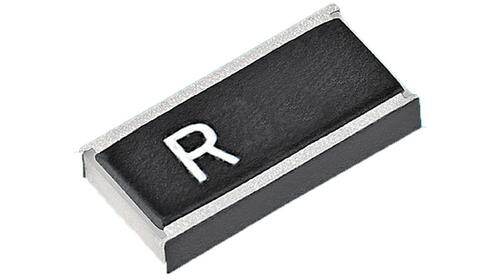

ERJB2AF822V image
Favorite
ERJB2AF822V image
Favorite

ERJB2AF822V

Panasonic
RoHS
/
Package 1206
Category Resistors / Chip Resistor - Surface Mount
Description FIXED RESISTOR 1206 Chip Resistor 1% 100ppm/C 8.2kOhm 500mW
PDF
/
Inventory: 4391
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 3.2mm

Technical

Rated Temperature 70°C
Rated Power Dissipation (P) 0.75W
Resistor Type FIXED RESISTOR
Construction Rectangular
Packing Method TR, PUNCHED, 7 INCH
Voltage - Rated DC 200V
Power Rating 500mW
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Terminal Finish Tin (Sn)
Resistance 8.2kOhm
Temperature Coefficient 100 ppm/°C
ECCN Code EAR99
Number of Terminations 2
JESD-609 Code e3
Tolerance 1%
Published 2008
Packaging Cut Tape

Physical

Number of Pins 2
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206
