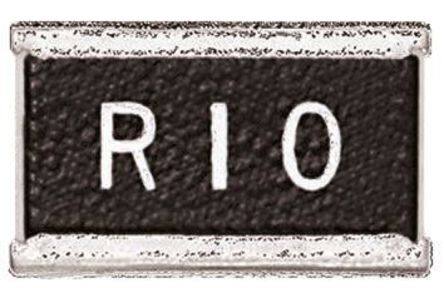

ERJB2AF152V
RoHS
/
Package 1206
Category Resistors / Chip Resistor - Surface Mount
Description
1206 FIXED RESISTOR Chip Resistor 500mW 1.5kOhm 100ppm/C 1%
PDF
/
Inventory: 1732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 3.2mm
Length 3.2mm
Height 650μm
Technical
Network Type ISOLATED
Rated Temperature 70°C
Number of Elements 1
Rated Power Dissipation (P) 0.75W
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 1.6mm
Number of Functions 1
Packing Method TR, PUNCHED, 7 INCH
Voltage - Rated DC 200V
Power Rating 500mW
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Resistance 1.5kOhm
Temperature Coefficient 100 ppm/°C
ECCN Code EAR99
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 1%
Published 2013
Packaging Cut Tape
Physical
Number of Pins 2
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206
Contact Plating Tin
Supply Chain
Factory Lead Time 17 Weeks
