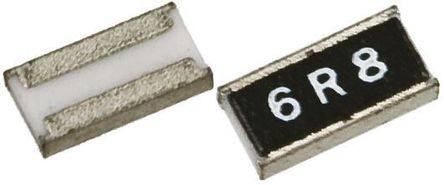

ERJB1AF300U image
Favorite
ERJB1AF300U image
Favorite

ERJB1AF300U

Panasonic
RoHS
/
Package 1020
Category Resistors / Chip Resistor - Surface Mount
Description 1020 FIXED RESISTOR Chip Resistor 1W 30Ohm 100ppm/C 1%
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.676735
≥1 USD $0.676735
≥10 USD $0.638427
≥100 USD $0.602291
≥500 USD $0.568207
≥1000 USD $0.536037
Inventory: 1186
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 5mm
Length 2.5mm
Height 550μm

Technical

Network Type ISOLATED
Rated Temperature 70°C
Number of Elements 3
Rated Power Dissipation (P) 1W
Reference Standard AEC-Q200
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 5mm
Number of Functions 1
Packing Method TR, Embossed, 7 Inch
Voltage - Rated DC 200V
Power Rating 1W
HTS Code 8533.21.00.20
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Terminal Finish Tin (Sn)
Resistance 30Ohm
Temperature Coefficient 100 ppm/°C
ECCN Code EAR99
Termination Flat
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 1%
Published 2010
Packaging Cut Tape

Physical

Terminal Shape WRAPAROUND
Package / Case 1020
Mount Surface Mount
