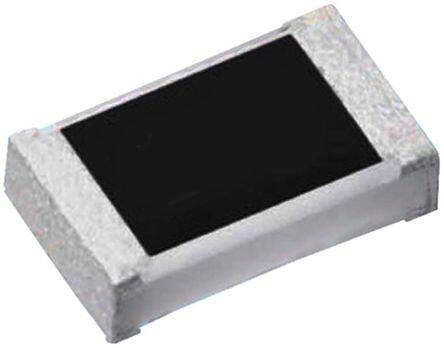

ERA3APB1652V image
Favorite
ERA3APB1652V image
Favorite

ERA3APB1652V

Panasonic
RoHS
/
Package 0603
Category Resistors / Chip Resistor - Surface Mount
Description FIXED RESISTOR 0603 Chip Resistor 0.1% 15ppm/C 16.5kOhm 100mW
PDF
/
Inventory: 8979
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Surface Mount
Package / Case 0603
Terminal Shape WRAPAROUND

Technical

Published 2011
Tolerance 0.1%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 2
Termination Solder
Temperature Coefficient 15 ppm/°C
Resistance 16.5kOhm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature 155°C
Min Operating Temperature -55°C
Additional Feature STANDARD: IEC60115-8
Power Rating 100mW
Packing Method TR, PUNCHED, 7 INCH
Technology METAL GLAZE/THICK FILM
Depth 800μm
Construction Chip
Resistor Type FIXED RESISTOR
Reference Standard AEC-Q200
Rated Power Dissipation (P) 0.1W
Working Voltage 75V
Rated Temperature 85°C

Dimensions

Height 450μm
Length 1.6mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
