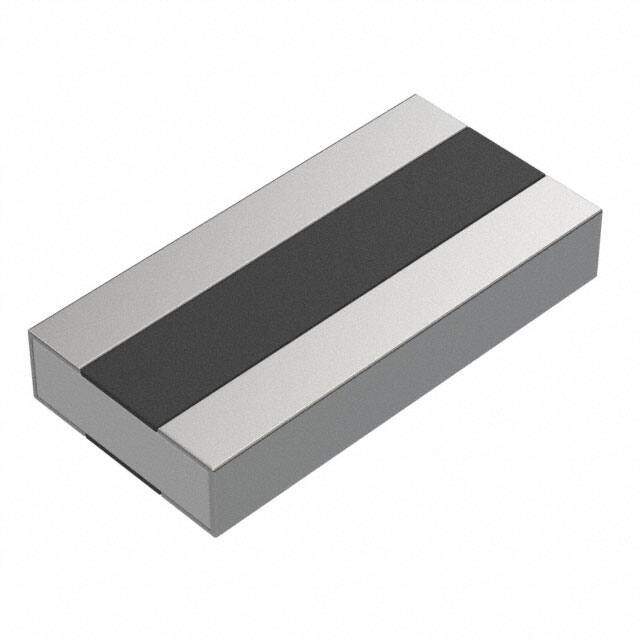

ERJ-B2BJR56V
RoHS
RoHS compliant
RoHS compliantPackage Wide 1206 (3216 Metric), 0612
Category Resistors / Chip Resistor - Surface Mount
Description
ERJ 0612 Wide 1206 (3216Metric) 0612 Chip Resistor ±5% ±200ppm/C 560mOhms 1W
PDF
/
Inventory: 3777
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Width 3.2mm
Length 1.6002mm
Height Seated (Max) 0.031 0.80mm
Height 787.4μm
Technical
Case Code (Imperial) 1206
Case Code (Metric) 3216
Max Power Dissipation 1W
Power Rating 1W
Voltage - Rated 200V
Power (Watts) 1W
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Resistance 560mOhms
Temperature Coefficient ±200ppm/°C
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Automotive AEC-Q200, Current Sense
Tolerance ±5%
Size / Dimension 0.063Lx0.126W 1.60mmx3.20mm
Series ERJ
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Supplier Device Package 0612
Package / Case Wide 1206 (3216 Metric), 0612
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 12 Weeks
