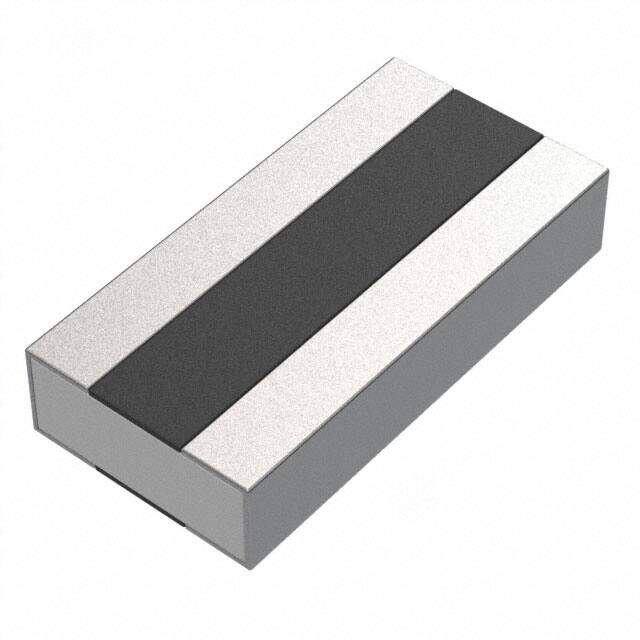

ERJ-B2AJ470V
RoHS
RoHS compliant
RoHS compliantPackage Wide 1206 (3216 Metric), 0612
Category Resistors / Chip Resistor - Surface Mount
Description
Wide 1206 (3216Metric) 0612 0612 ERJ 0.063Lx0.126W 1.60mmx3.20mm 0.75W 3/4W 47Ohms ±200ppm/C
PDF
/
Inventory: 2298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Package / Case Wide 1206 (3216 Metric), 0612
Supplier Device Package 0612
Weight 13.210878mg
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series ERJ
Size / Dimension 0.063Lx0.126W 1.60mmx3.20mm
Tolerance ±5%
Feature Automotive AEC-Q200, Current Sense
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Temperature Coefficient ±200ppm/°C
Resistance 47Ohms
Max Operating Temperature 155°C
Min Operating Temperature -55°C
Composition Thick Film
Power (Watts) 0.75W 3/4W
Voltage - Rated 200V
Power Rating 750mW
Max Power Dissipation 750mW
Case Code (Metric) 3216
Case Code (Imperial) 1206
Dimensions
Height 787.4μm
Height Seated (Max) 0.031 0.80mm
Length 1.6002mm
Width 3.2mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
