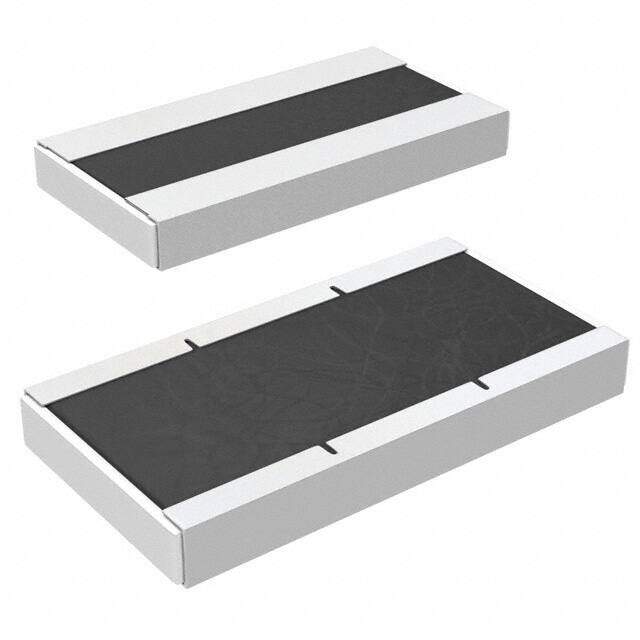

ERJ-B1CJR20U
RoHS
RoHS compliant
RoHS compliantPackage Wide 2010 (5025 Metric), 1020
Category Resistors / Chip Resistor - Surface Mount
Description
ERJ FIXED RESISTOR Wide 2010 (5025Metric) 1020 Chip Resistor ±5% ±200ppm/C 200mOhm 1W
PDF
/
Inventory: 6902
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.030 0.75mm
Height 762μm
Technical
Network Type ISOLATED
Number of Elements 3
Case Code (Imperial) 2010
Rated Power Dissipation (P) 2W
Case Code (Metric) 5025
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 5mm
Number of Functions 1
Max Power Dissipation 2W
Packing Method TR, Embossed, 7 Inch
Voltage - Rated DC 200V
Power Rating 1W
Voltage - Rated 200V
Composition Thick Film
Resistance 200mOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Automotive AEC-Q200, Current Sense
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.098Lx0.197W 2.50mmx5.00mm
Series ERJ
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Terminal Shape WRAPAROUND
Package / Case Wide 2010 (5025 Metric), 1020
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 12 Weeks
