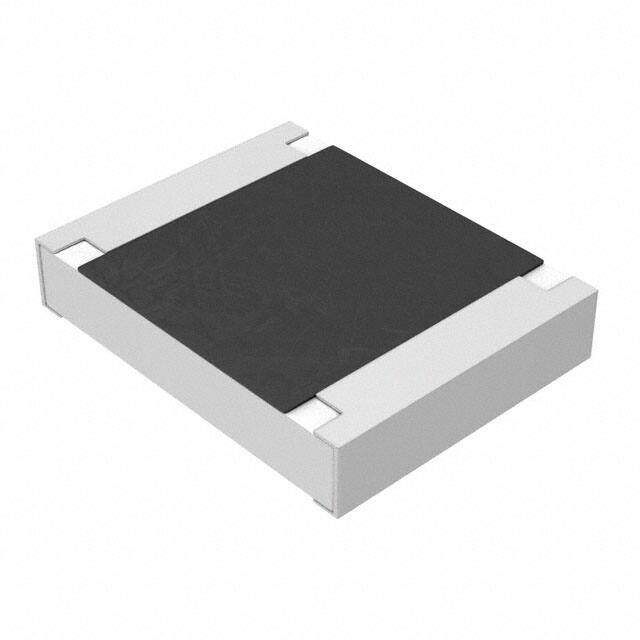

ERA-14EB393U
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1210 (3225Metric) FIXED RESISTOR ERA-14 0.126Lx0.098W 3.20mmx2.50mm 0.25W 1/4W 39kOhm ±25ppm/C
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.37224
Inventory: 72
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.028 0.70mm
Height 711.2μm
Technical
Case Code (Imperial) 1210
Case Code (Metric) 3225
Resistor Type FIXED RESISTOR
Construction Chip
Technology METAL FILM
Max Power Dissipation 250mW
Packing Method TR, EMBOSSED, 7 INCH
Voltage - Rated DC 150V
Power Rating 250mW
Subcategory Fixed Resistors
Power (Watts) 0.25W 1/4W
Composition Thin Film
Resistance 39kOhm
Temperature Coefficient ±25ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±0.1%
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series ERA-14
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WRAPAROUND
Package / Case 1210 (3225 Metric)
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 12 Weeks
