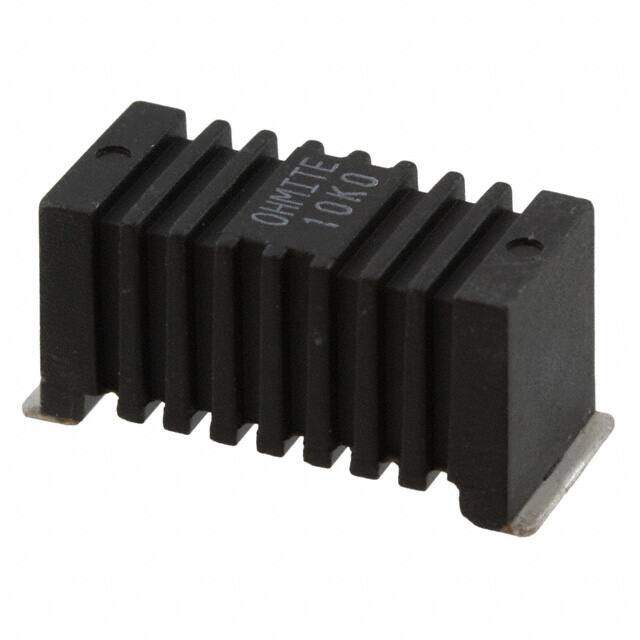

RW5S0FA10K0JE
RoHS
RoHS compliant
RoHS compliantPackage SMD, L-Bend
Category Resistors / Chip Resistor - Surface Mount
Description
SMD L-Bend FIXED RESISTOR RW 0.806Lx0.365W 20.47mmx9.27mm 5W 10kOhm ±20ppm/C
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.968
≥1 USD $0.968
≥10 USD $0.81576
≥100 USD $0.79669
≥500 USD $0.74976
≥1000 USD $0.621632
≥3000 USD $0.56232
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.406 10.31mm
Height 10.31mm
Technical
Rated Power Dissipation (P) 5W
Resistor Type FIXED RESISTOR
Construction Heat Sink
Depth 9.27mm
Technology WIRE WOUND
Max Power Dissipation 5W
Power Rating 5W
Composition Wirewound
Resistance 10kOhm
Temperature Coefficient ±20ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.806Lx0.365W 20.47mmx9.27mm
Series RW
Published 2013
Packaging Bulk
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case SMD, L-Bend
Supply Chain
Factory Lead Time 26 Weeks

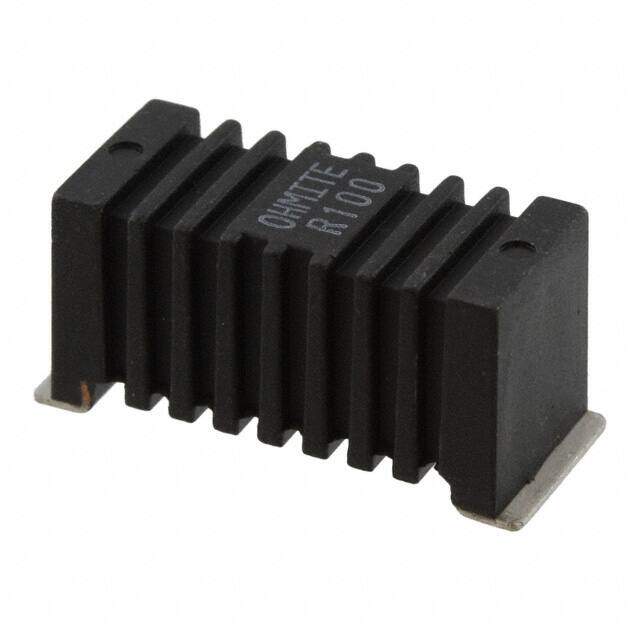

Alternative Model
