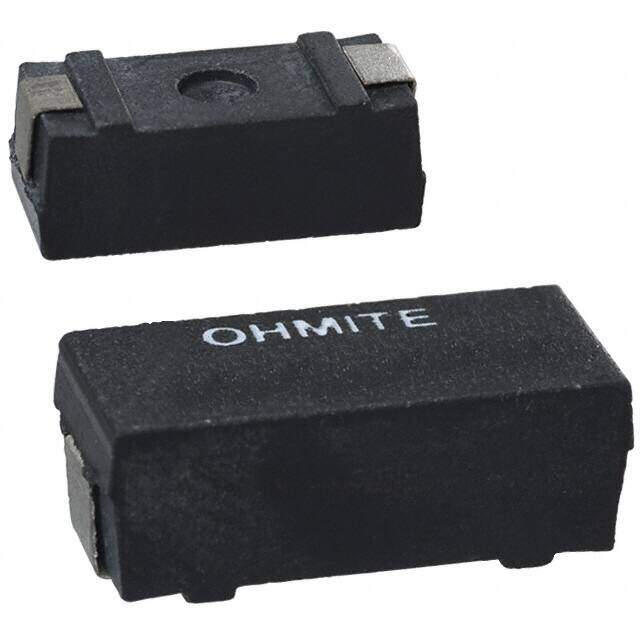

RW3R0DBR100JET image
Favorite
RW3R0DBR100JET image
Favorite

RW3R0DBR100JET

Ohmite
RoHS
RoHS RoHS compliant
Package 6327 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description 6327J-Lead FIXED RESISTOR RW 0.625Lx0.273W 15.88mmx6.93mm 3W 100mOhm ±90ppm/C
PDF
/
Buying Options
Total Price: USD $2.27
Unit Price: USD $2.266547
≥1 USD $2.266547
≥10 USD $2.138248
≥100 USD $2.017214
≥500 USD $1.903039
≥1000 USD $1.795321
Inventory: 1143
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Package / Case 6327 J-Lead
Terminal Shape J BEND

Technical

Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 2006
Series RW
Size / Dimension 0.625Lx0.273W 15.88mmx6.93mm
Tolerance ±5%
JESD-609 Code e3
Feature Current Sense
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±90ppm/°C
Resistance 100mOhm
Terminal Finish Matte Tin (Sn)
Composition Wirewound
Voltage - Rated 200V
Power Rating 3W
Voltage - Rated DC 200V
Packing Method TR, 13 Inch
Max Power Dissipation 3W
Technology WIRE WOUND
Construction Rectangular
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Rated Power Dissipation (P) 3W
Case Code (Imperial) 6327

Dimensions

Height 5.8674mm
Height Seated (Max) 0.231 5.87mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
