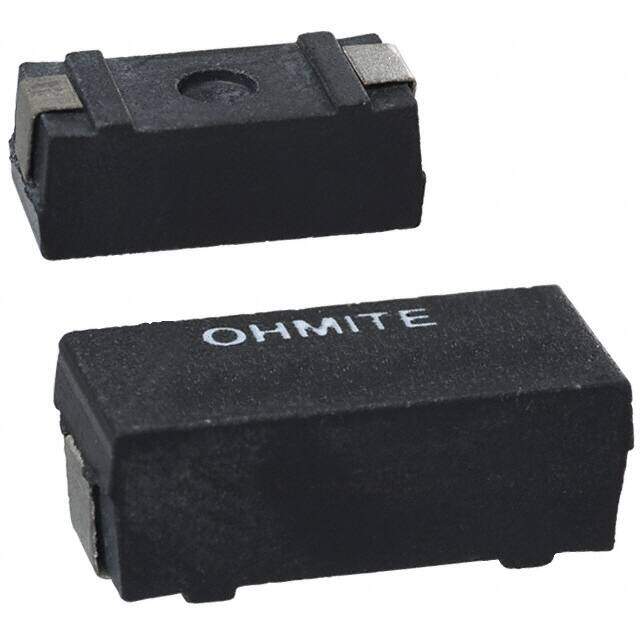

RW3R0DBR005JE
RoHS
RoHS compliant
RoHS compliantPackage 6327 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description
6327J-Lead FIXED RESISTOR RW 0.625Lx0.273W 15.88mmx6.93mm 3W 5mOhm 90ppm/C
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.8392
≥1 USD $1.8392
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.231 5.87mm
Height 5.8674mm
Technical
Case Code (Imperial) 6327
Rated Power Dissipation (P) 3W
Reach Compliance Code unknown
Resistor Type FIXED RESISTOR
Construction Recessed Base
Technology WIRE WOUND
Max Power Dissipation 3W
Voltage - Rated DC 200V
Power Rating 3W
Subcategory Fixed Resistors
Voltage - Rated 200V
Composition Wirewound
Terminal Finish Matte Tin (Sn)
Resistance 5mOhm
Temperature Coefficient 90 ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Current Sense
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.625Lx0.273W 15.88mmx6.93mm
Series RW
Published 2011
Packaging Bulk
Operating Temperature -55°C~150°C
Physical
Package / Case 6327 J-Lead
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
